Los Gatos Pipe Utility Bridge

San Jose, CA
January 2008
Download .PDFDownload .PDF
Project For
San Jose Water Company
Maximum Protected Height
Maximum Exposed Height
Maximum Sheet Length
Max Depth
Max Retained Height
Project For
San Jose Water Company
Wall Lengths
Number of Sites
Max Depth
Max Retained Height


  • 5’6” x 115‘ Cascade Truss
  • Custom Pipe Supports
  • Aluminum Decking
  • Horizontal Rail

Shipping Details

Project Summary

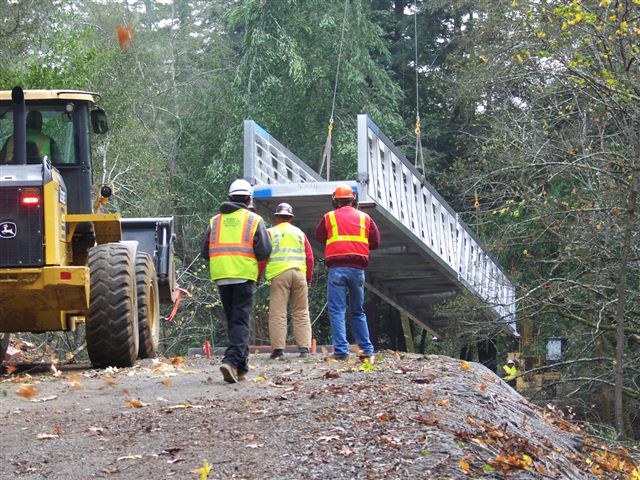

San Jose Water Company (SJWC) set out to extend their pipeline across the Los Gatos Creek. A utility bridge was needed to support the pipeline, however, access to the installation site was extremely poor. It was determined that a helicopter would need to transport the bridge to the site. The SJWC began to look for the lightest, long-span structure that could support the 36” diameter water pipe but also allow an 18” clearance on both sides of the bridge for maintenance traffic. GatorBridge® was the only manufacturer to meet the custom design requirements for a light weight, long lasting material to meet the transportation and low maintenance needs. The aluminum pipe support bridge was delivered prefabricated in two sections and were connected at a staging site. The helicopter transported the bridge and positioned the pipe into the bridge seat in less than a day’s time.
